TURBINE METRE K14/K15

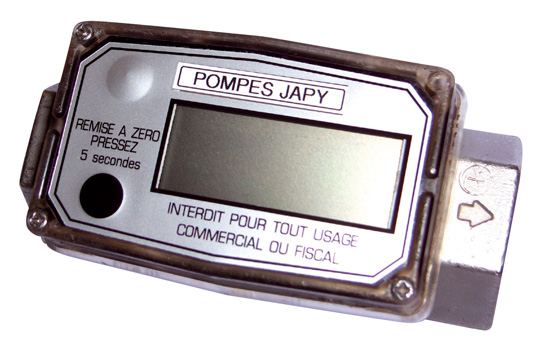

compteur à turbine K14


Body

Bearing

Turbine and support

Repeatability

Absolute precision


Viscosity

Pressure

Compliance


stainless steel 316

Ceramic

PVDF

± 0,1 %

linear zone + 2 % of the display -
non-linear zone + 5 % of the display

Recommended absolute : 2,000 mPa (cPo)

Maximum service: 100 bars

European directive ATEX 94/9/EC
(II 3 G IIC T4 U)





The autonomous turbine metres / flow metres open up a large number of possibilities for use. Constructed in a modular fashion: a turbine bloc and a calculator block (indicator). They adapt to the constraints of the most severe processes (excellent chemical resistance, very good precision and easy calibration).

The turbine block of the metre is reliable: it contains only one moving part. An 'internal parts' kit makes putting back into service simple and rapid. Only 4 high-quality materials are made wet by the product: aluminium, tungsten carbide, PVDF and ceramic. The ferrite signal emitter is plunged totally in the PVDF so as never to be attacked by the product. The calculator / indicator block corresponds to a metre and a flow metre. Constructed around a powerful industrial microprocessor, it displays data on a 6-digit LCD screen.

Référence Range of flow rate Orifices Weight
K14 4 à 40 litres/min 1/2" F 1 Kg
K15 20 à 190 litres/min 1" F 1,1 Kg
